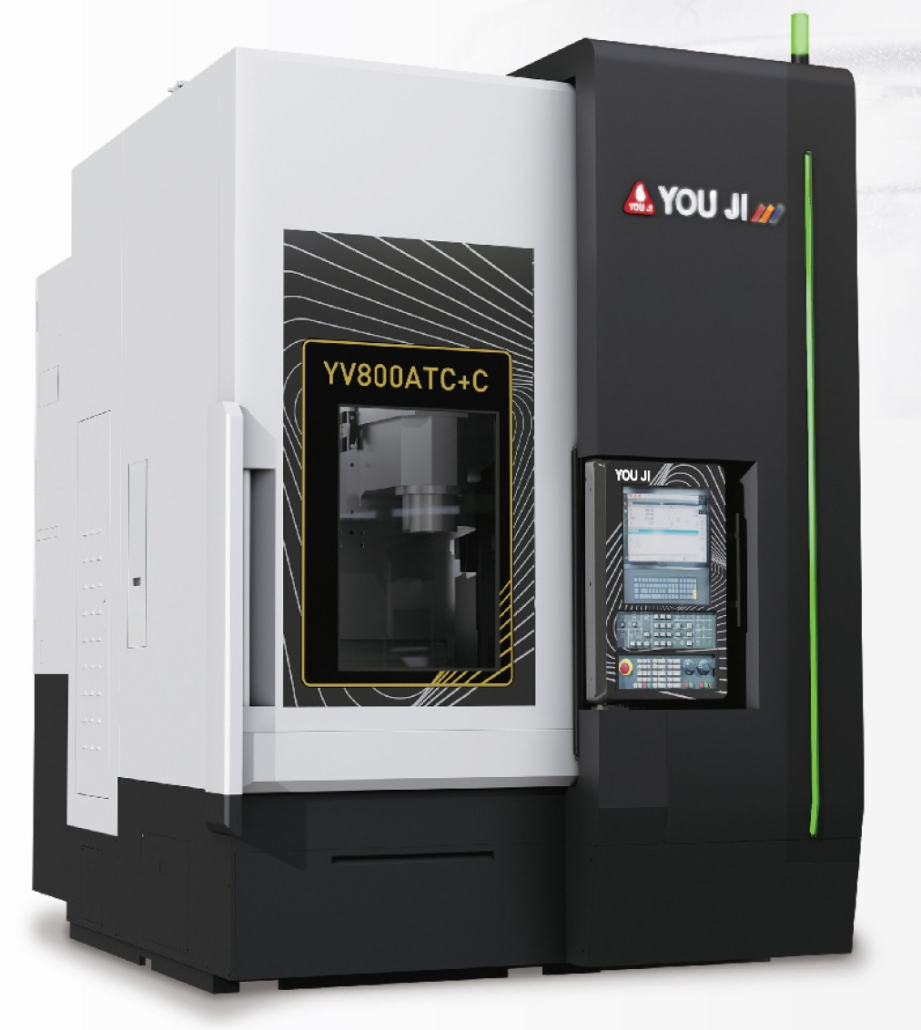

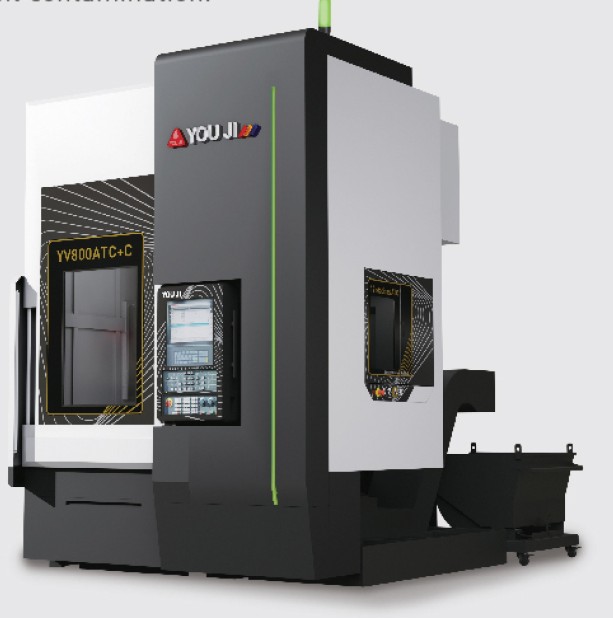

You Ji YV Series 200-800mm– Precision Vertical Turning Lathes

The You Ji YV Series offers robust, compact vertical turning lathes designed for high-precision machining of small to medium-sized components. Engineered for efficiency and accuracy, the YV Series is perfectly suited to automotive, aerospace, and general engineering applications.

Key Features:

✅ Robust and Stable Design

Meehanite cast iron base and column for superior rigidity.
Oversized box ways and pre-tensioned ballscrews ensure precision and reliability.

✅ Versatile Machining Capabilities

Range of table sizes (400 mm to 1,600 mm) accommodates diverse workpiece dimensions.
Optional C-axis and live tooling enable comprehensive machining operations in a single setup.

✅ Advanced CNC Automation

Equipped with intuitive Fanuc or Siemens CNC controls.
Automatic Tool Changer (ATC) enhances productivity and minimizes downtime.

Model Specifications Overview:

Model	Max Swing Diameter	Max Turning Diameter	Max Turning Height	Max Workpiece Weight	Spindle Speed	Turret Type
YV-200	400 mm	250 mm	200 mm	200 kg	3,500 rpm	4 tool gang or Horiz Disk
YV-250	500 mm	350 mm	250 mm	300 kg	2,500 rpm	4 tool gang or Horiz or Vert Disk
YV-420	700 mm	500 mm	500 mm	1,200 kg	2,500 rpm	Horiz or Vert Disk
YV-500	750 mm	550 mm	500 mm	1,200 kg	2,000 rpm	Horiz or Vert Disk
YV-550	800 mm	650 mm	500 mm	1,200 kg	2,000 rpm	Horiz or Vert Disk or ATC
YV-600	850 mm	750 mm	600 mm	1,800 kg	1,500 rpm	Horiz or Vert Disk or ATC
YV-700	900 mm	800 mm	600 mm	1,800 kg	1,500 rpm	Horiz or Vert Disk or ATC
YV-1000	1,350 mm	1,100 mm	900 mm	4,000 kg	600 rpm	Ram with 5 station Vertical Disk or 12-16 tool ATC
YV-1200	1,600 mm	1,350 mm	1,200 mm	5,000 kg	350 rpm	Ram with 5 station Vertical Disk or 12-16 tool ATC
YV-1600	2,000 mm	1,600 mm	1,200 mm	8,000 kg	250 rpm	Ram with 5 station Vertical Disk or 12-16 tool ATC
