You Ji VTL Series
Worlds best selling range of Vertical Lathes
Features
- VTL machines available in table sizes from 1000mm to 4500mm
- Robust and suitable for demanding applications
- The largest producer of VTL worldwide

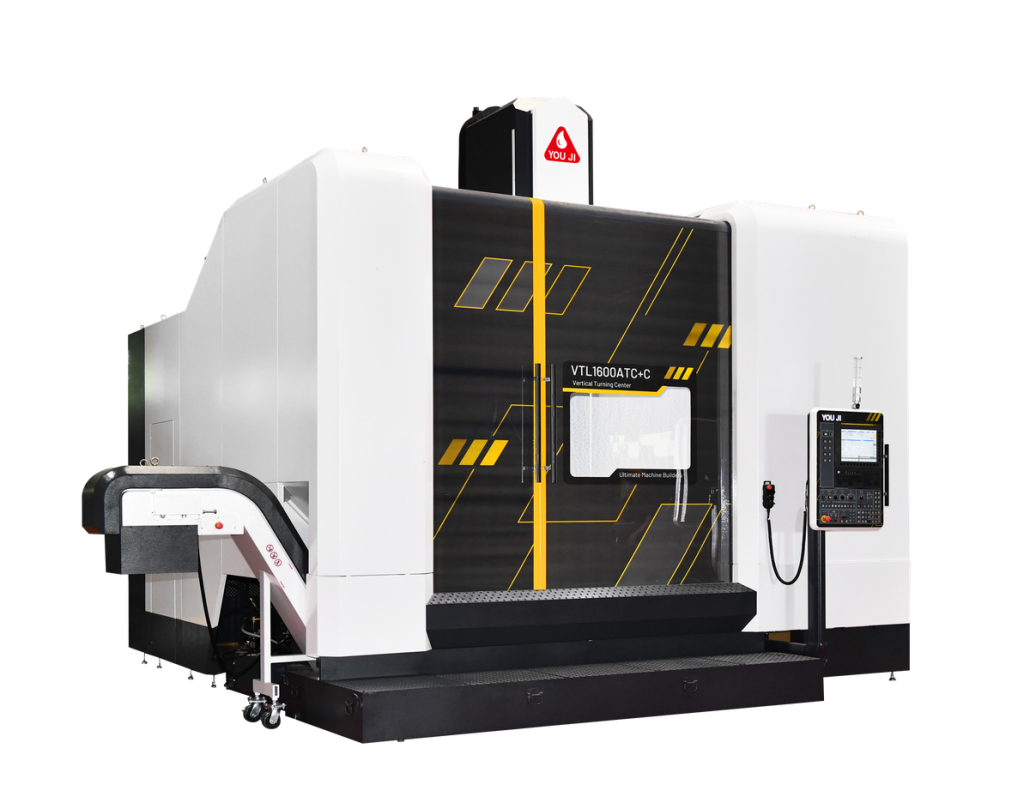

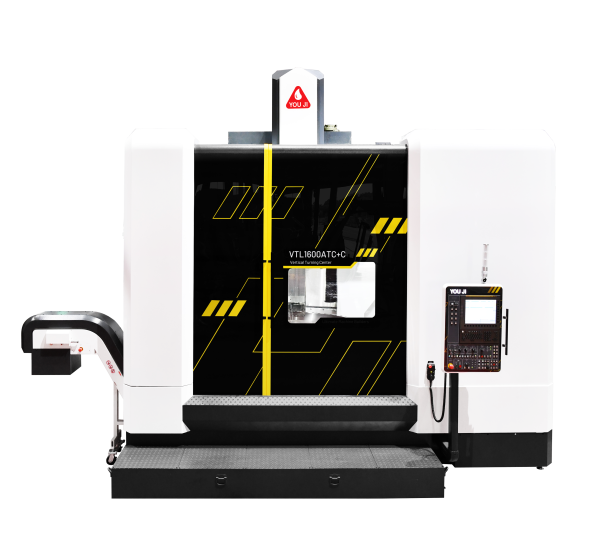

You Ji VTL1000–4500 Series – Heavy-Duty Vertical Turning Lathes
Precision and Power for Large-Scale Machining
The You Ji VTL1000–4500 Series represents a range of high-performance vertical turning lathes designed for machining large, heavy components with exceptional precision. Engineered with robust construction and advanced features, these machines are ideal for industries such as aerospace, energy, transportation, and heavy equipment manufacturing.
Key Features:
✅ Robust Construction for Heavy-Duty Machining
-
Heavy Meehanite cast iron base and column ensure maximum rigidity and stability.
-
Oversized box ways and large-diameter pre-tensioned ballscrews provide superior support and precision.
✅ Versatile Machining Capabilities
-
Available in table sizes ranging from 1,000 mm to 4,500 mm diameter, accommodating a wide range of workpiece sizes.
-
Optional C-axis and live tooling enable complex milling, drilling, and tapping operations in a single setup.
✅ Advanced Automation and Control
-
Equipped with Fanuc Oi-TD or Siemens CNC Control for reliable and user-friendly operation.
-
Automatic Tool Changer (ATC) options ranging from 12 to 60 tools enhance productivity and reduce downtime.
Model Specifications Overview:
Model | Table Diameter | Max Swing Diameter | Max Cutting Height | |
---|---|---|---|---|
VTL-1000ATC | 1,000 mm | 1,350 mm | 900 mm | |
VTL-1600ATC | 1,600 mm | 2,000 mm | 1,200 mm | |
VTL-2000ATC | 2,000 mm | 2,500 mm | 1,600 mm | |
VTL-2500ATC | 2,500 mm | 3,000 mm | 1,600 mm | |
VTL-3000ATC | 3,000 mm | 3,400 mm | 1,700 mm | |
VTL-3500ATC | 3,500 mm | 4,100 mm | 1,700 mm | |
VTL-4000ATC | 4,000 mm | 4,600 mm | 1,600 mm | |
VTL-4500ATC | 4,500 mm | 5,100 mm | 1,600 mm |
Note: Specifications may vary based on configuration and options.
Applications:
-
Aerospace structural components
-
Energy sector parts, including wind turbine hubs and generator housings
-
Heavy-duty transportation equipment
-
Large-scale industrial machinery components.
Variants include
- ATC - tool change magazine starting with 16 stations up to 70
- C axis
- Y axis
- Double Ram
- 2 additional heights of column
- Automatic Pallet changer
- Fanuc or Siemens controls
Why Choose You Ji VTL Series from TDT Machine Tools?
-
Comprehensive range accommodating various workpiece sizes and machining requirements.
-
Proven performance in heavy-duty and precision machining applications.
-
Backed by TDT Machine Tools' expert support and service in the UK.
