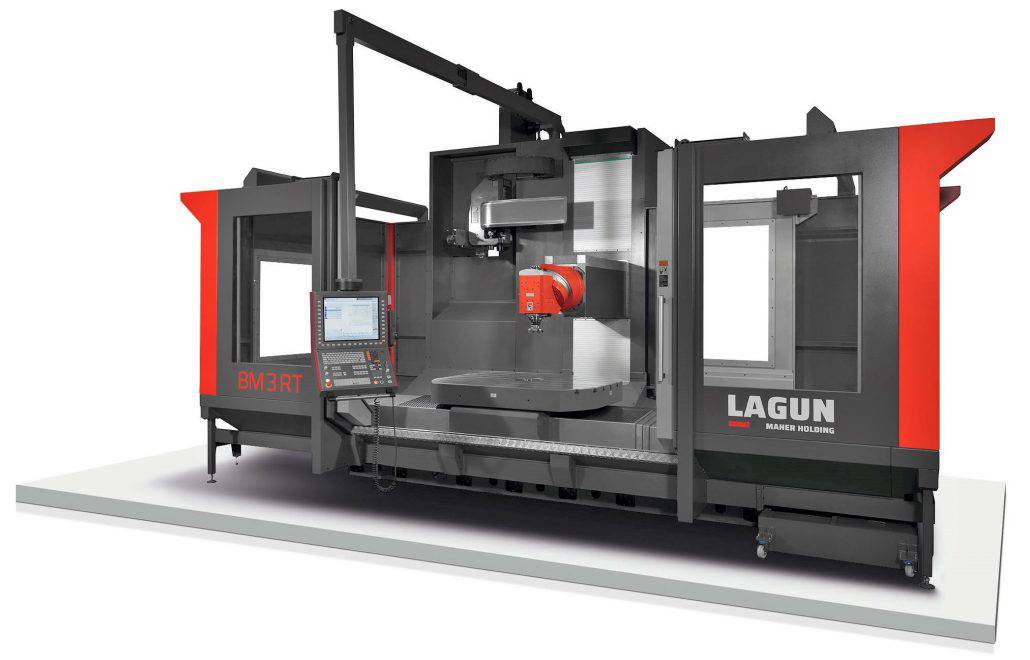

Lagun BM RT
Bed Type Milling Machine With Rotary Table
Features
- Robust table 1600 mm long and 1200 mm wide
- Load capacity of 6 Tn
- Admissible torque during milling 10,000 Nm
Bed type milling machine with rotary table
Ideal machine for machining bulky workpieces on all 5 sides.
· Robust table 1600 mm long and 1200 mm wide, guided by long roller-shoes, size 55. · With a load capacity of 6 Tn.
· Tangential moment with hydraulically locked table 10,000 Nm. Locking by means of a hydraulically actuated brake calliper.
· Admissible torque during milling 10,000 Nm.
Optimal care in the design of chip and coolant removal.
The BM RT milling machine is equipped with channels around the bed perimeter, full enclosure, double built-in chip extractor, with easy access to the machine and a perfect overview of the working area.
Ideal machine for machining bulky workpieces on all 5 sides.
· Robust table 1600 mm long and 1200 mm wide, guided by long roller-shoes, size 55. · With a load capacity of 6 Tn.
· Tangential moment with hydraulically locked table 10,000 Nm. Locking by means of a hydraulically actuated brake calliper.
· Admissible torque during milling 10,000 Nm.
Optimal care in the design of chip and coolant removal.
The BM RT milling machine is equipped with channels around the bed perimeter, full enclosure, double built-in chip extractor, with easy access to the machine and a perfect overview of the working area.
