Awea AHM Horizontal Machining Centres

Features

Super Rigid Gearbox Driven
from 500mm to 1000mm pallets

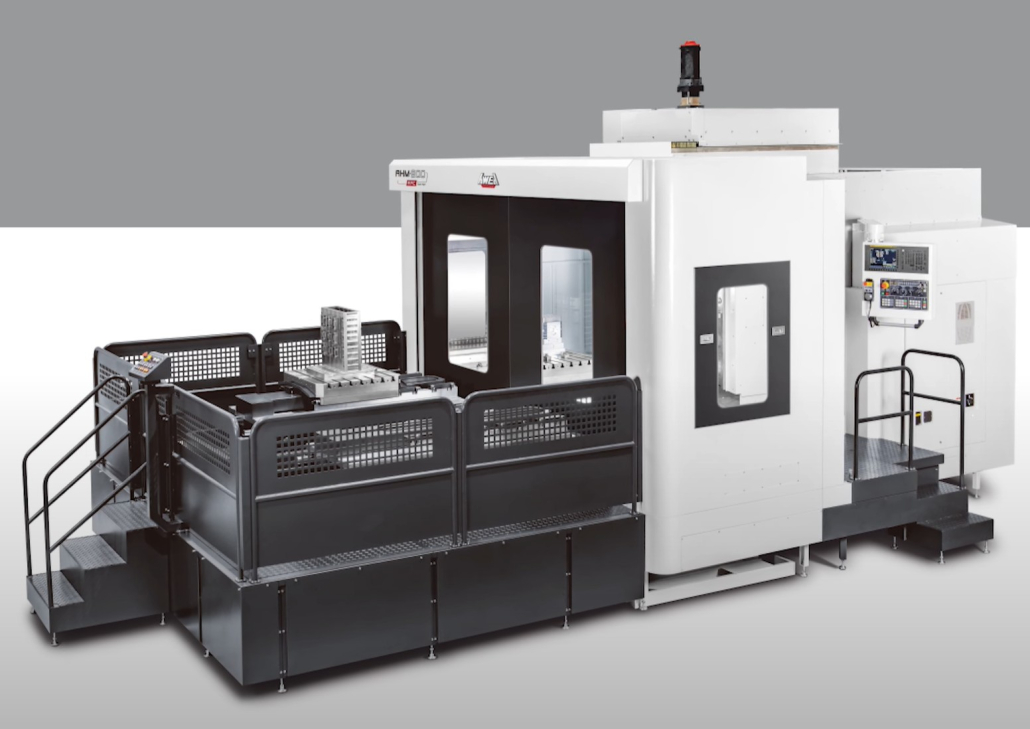

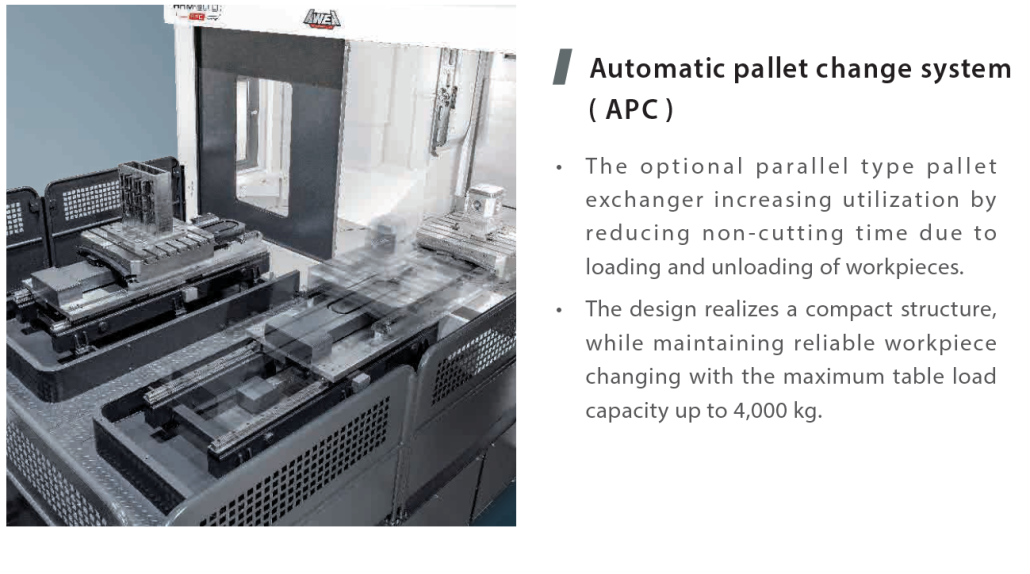

Multi Pallet Systems

Enquire Now

Download Brochure

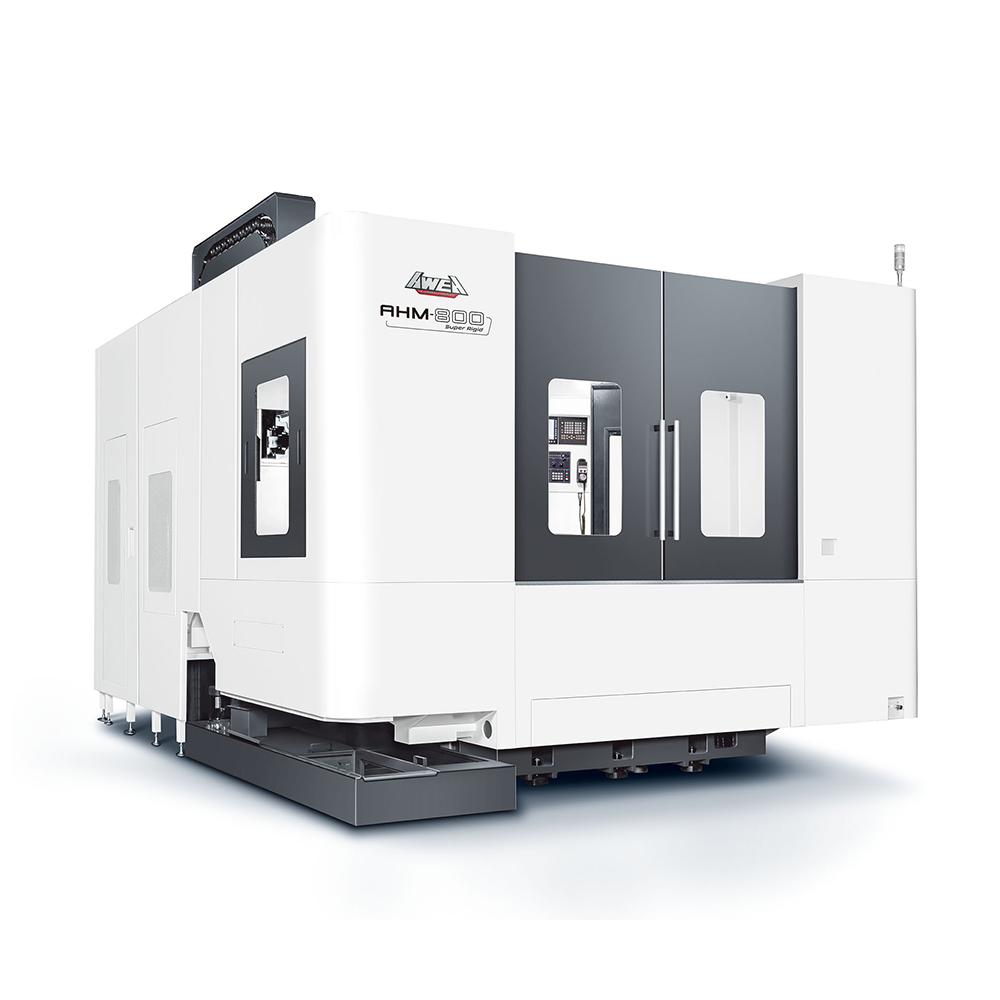

AWEA AHM Series – High-Performance Horizontal Machining Centres

Engineered for Power, Precision, and Productivity

Introducing the AWEA AHM Series Horizontal Machining Centres, setting new benchmarks in cost-effective heavy-duty machining. Designed with precision, power, and efficiency in mind, the AHM series meets demanding machining requirements across automotive, energy, heavy machinery, and mould-making industries.

Key Features & Advantages:

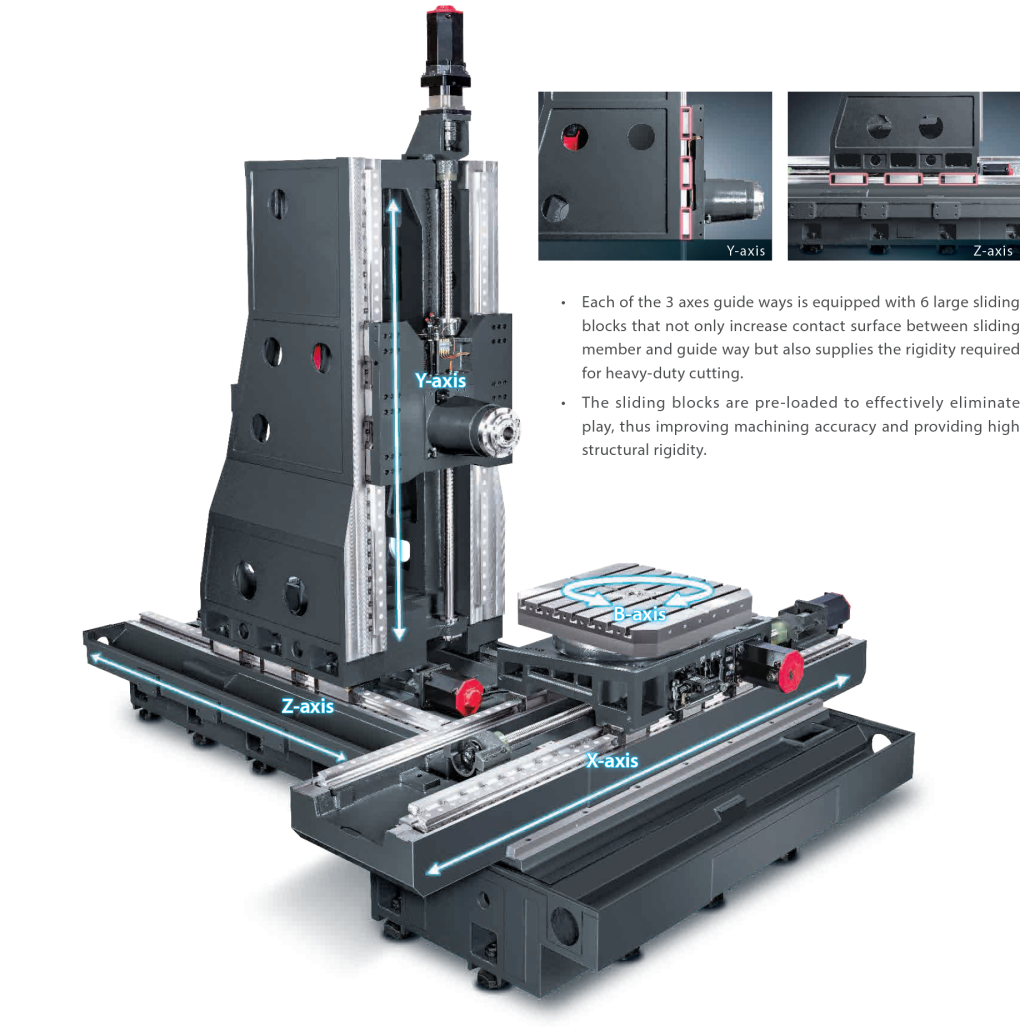

✅ Ultra-Rigid Machine Structure

One-piece T-shaped Meehanite cast base and reinforced column ensure exceptional stability.
Advanced Finite Element Analysis (FEM) for optimized structure minimizing vibration and maximizing accuracy.

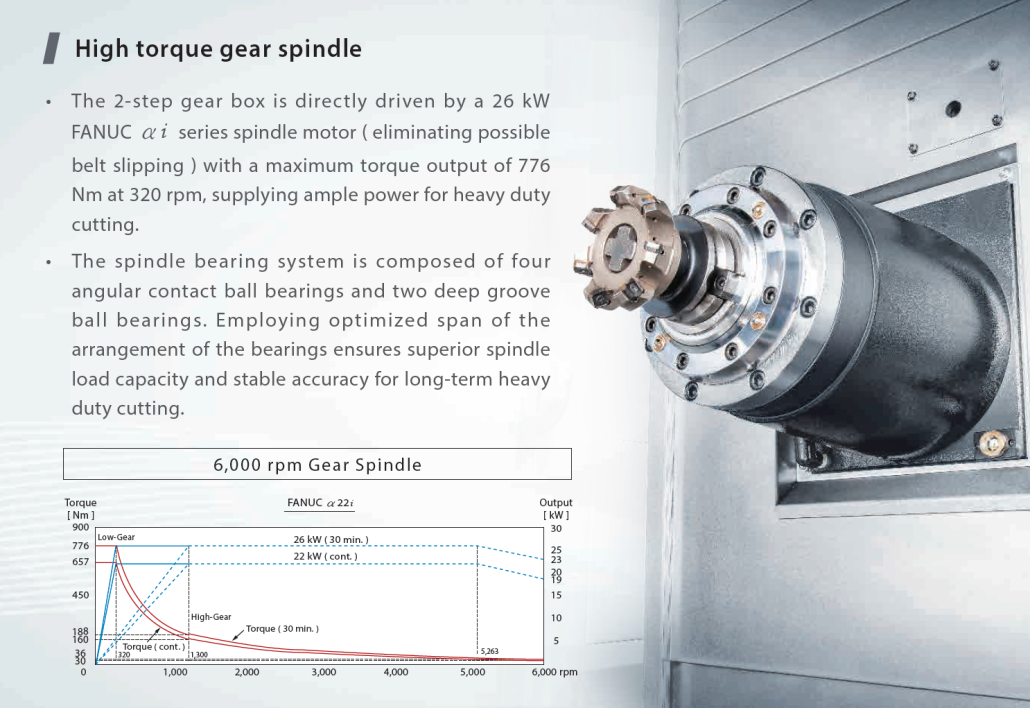

✅ High Torque, Robust Spindle System

Powerful 26 kW spindle motor with 2-step gearbox delivering torque up to 776 Nm.
Superior bearing arrangement ensures stable heavy-duty cutting and consistent accuracy.
Optional quill-type spindle available for extended machining flexibility (500 mm W-axis travel).

✅ Precision and Efficiency in Machining

Roller-type linear guideways with heavy-duty load-bearing capability and rapid traverse rates up to 20 m/min.
Standard high-resolution linear scales (0.01 μm) providing precision positioning accuracy.
B-axis 1° indexing capability, enabling complex shape and multi-surface machining in a single setup.

Model Specifications:

Travel (X/Y/Z axes): Up to 2,100 / 1,350 / 1,200 mm
Max Workpiece Size: Ø1,700 mm x 1,350 mm (model dependent)
Table Load Capacity: Up to 4,000 kg
Spindle Speed: Gear-driven spindle up to 6,000 rpm

Advanced Chip Management and Tool Handling**

Four integrated chip augers rapidly remove chips, minimizing downtime.
High-capacity coolant flushing system ensures continuous machining precision.
Reliable 40T chain-type arm ATC system (expandable to 60 tools) for efficient tool changes.

Exceptional Operability & Safety**

Front-accessible maintenance points and large operator space simplify daily operations.
Full-enclosure splash guard ensures operator safety and maintains a clean working environment.
Large observation windows and ergonomic control interfaces enhance usability and convenience.

Why Choose the AWEA AHM Series from TDT Machine Tools?

✔ Built for heavy-duty cutting with unmatched torque and stability. ✔ Comprehensive capabilities in complex part machining. ✔ UK-based expert support from TDT Machine Tools, your partner in machining excellence.

Applications Across Industries:

Automotive components
Heavy machinery and equipment
Energy sector components
Mould and die semi-finishing

Technical Snapshot:

Specification	Details
Spindle Power	26 kW, Gear-driven, up to 776 Nm torque
Table Indexing	B-axis 1° indexing
Rapid Traverse	Up to 20 m/min (X/Y/Z axes)
Tool Magazine	Standard 40T, optional 60T
Accuracy (ISO230-2)	Positioning: 0.008 mm, Repeatability: 0.003 mm
Maximum Table Load	4,000 kg

Boost Your Production Capabilities Today

Transform your machining performance with the robust, high-precision AWEA AHM Series Horizontal Machining Centres from TDT Machine Tools. 📞 Contact our technical team today on 01788 570411 🔖 #thebigmachinecompany
