GP Tools: GP-35

Name: GP Tools: GP-35
SKU: 1882
Availability: InStock

Enquire Now

Download GP-35 Catalogue

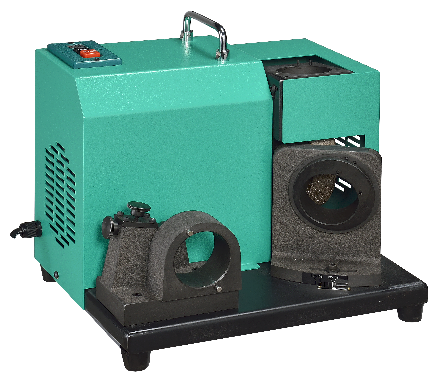

The GP Tools' GP-35 Drill Bit Sharpener has been designed to grind HSS twist drill bits ranging from 34.1mm to 52mm and with drill sharpening angles of between 118 and 140 degrees.

Specification

Ø Drill Bit Range (mm)	Ø34.1 ~ Ø52
Tip Angle Range	118° ~ 140°
Power Supply	220 ~ 240V-AC or 380V (Optional)
Motor Speed (R.P.M.)	50Hz / 2,800 & 60Hz / 3,330
Supply Standard Wheel	CBN #100 (For HSS Drill Bits)
Collet Series	Chuck Set x 1 Set (2pcs)
Gross Weight	30.5kg
Dimensions (mm)	384 × 285 × 312
